Description

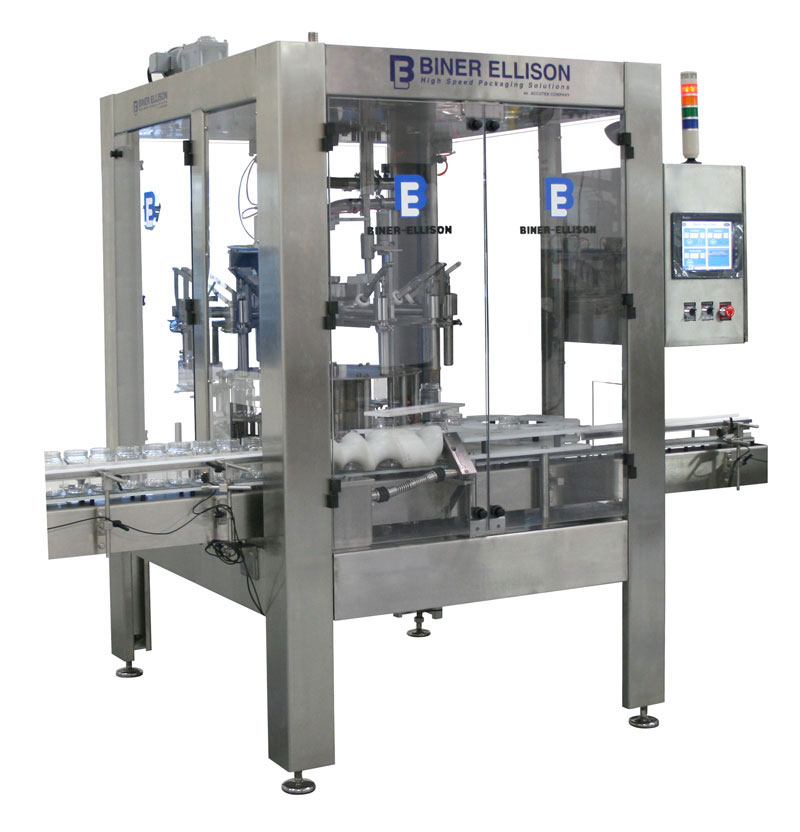

The RVF-52 machines take design standards to new heights. This filling machine provides a higher speed, safety, and productivity while keeping the production efficient and the cost low. The RVF Series is an impressive line that provides precise volumetric filling of viscous and semi-viscous products utilizing our “Time and Flow” metering system. This design incorporates an overhead drive system and powered nozzle height adjustment with job memory.
Synchronized volumetric fillers are considered to be the most accurate of high viscosity filler designs.
Features
-
- Suitable for filling a wide range of liquids from light oils to heavy viscous semi-solids at speeds up to 450+ CPM
- Touch screen control packaging includes job memory, tooling memory, and management lockout
- Variable speed “Top Drive” system keeps key systems away from wetted areas for easy access and lasting performance
- Can accommodate glass, plastic, and metal containers
- Synchronized “pump to turret” design for smooth filling of light or thick products at a high rate of production
- Each machine incorporates safety interlocks, polycarbonate guarding, and other integrated safety features
- All systems include self-aligning tool which means less change parts for a quick and trouble-free changeover
- Easy operation and maintenance
Options
-
- Diving Heads
- Explosion Proof
- Sanitary Conveyor System
Specs
| Length: | 69” |
| height: | 89” |
| width: | 75” |
| Weight: | ~3100 lbs. (1400 kg) |
| Electrical Requirements: | 220/240 VAC, 20 AMP, 3 Phase |
| Air Requirements: | 87 PSI @ 2CFM |
| Filling Speed: | Up to 320 CPM1 |
| Viscosity Range: | 1-18,000 cp |
| Foamy Product: | Not Recommended |
| Corrosive Product: | YES |
| Heated Product: | YES |
| Particulates Product: | YES |
